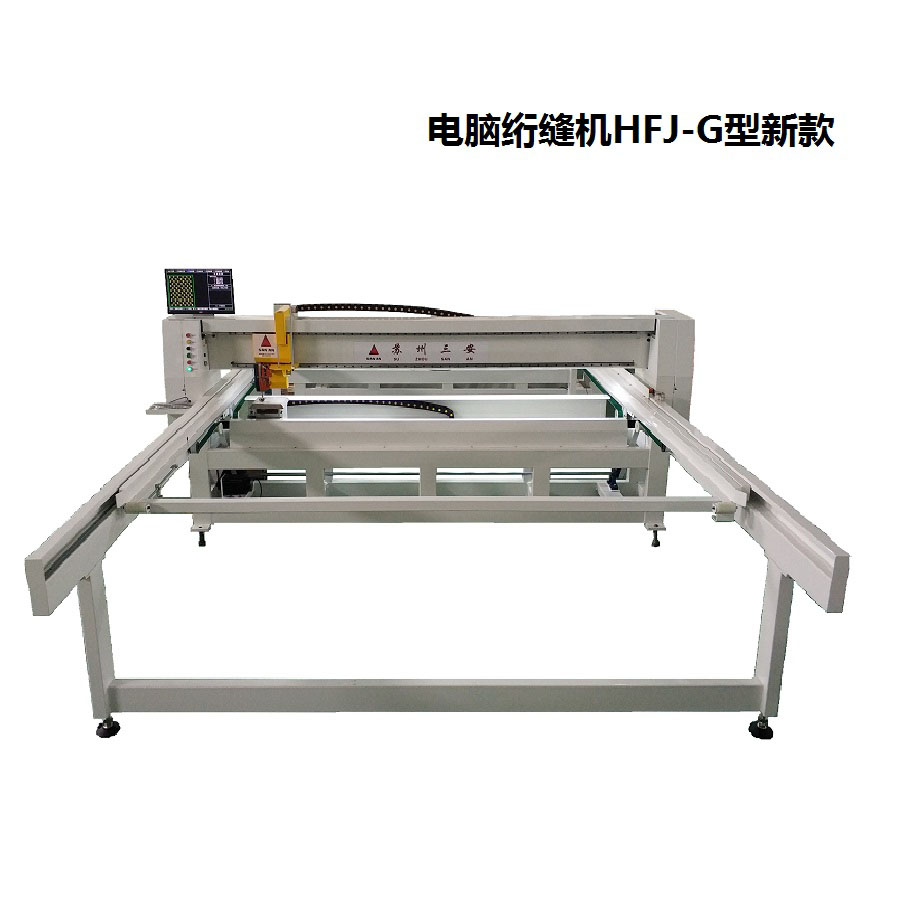

HFJ-G（SERIES）
Product description：
HFJ-G series of computer high-speed quilting machine is the production of a variety of bed, pad cover sewing equipment, sewing efficiency, good design, fine graphics. The product is our latest research and development of high-end quilting equipment, using the upper and lower spindle synchronous servo control system, while X and Y to the step using the system, the servo system to improve the running speed and sewing accuracy; extended high-speed state Under the service life of parts, reducing noise and improve the reliability of the operation of the machine. Leading peer, domestic initiative.
Specification：
| Specification | HFJ-26GT | HFJ-28GT | HFJ-30GT | HFJ-32GT | HFJ-35GT | |
| The maximum size is loaded | 2.6mm*2.8mm | 2.8mm*3.2mm | 3.0mm*3.2mm | 3.2mm*3.5mm | 3.5mm*3.5mm | |
| Maximum drop size | 2.4mm*2.6mm | 2.6mm*3.0mm | 2.8mm*3.0mm | 3.0mm*3.3mm | 3.3mm*3.3mm | |
| Nose | Single head, single needle, double thread lock stitch, big hook | |||||
| Needle | GROZ | |||||
| Seam ability | 1200g/m2(Max) | 1000g/m2(Max) | ||||
| Quilted needle speed | 500-2800 Needle / minute | 500-2800 Needle / minute | ||||
| Needle pitch | 2-7mm Adjustable | |||||
| Machine size (LWH) | 5.0m*3.42m*1.32m | 5.4m*3.62m*1.32m | 5.4m*3.82m*1.4m | 5.8m*4.12m*1.4m | 5.8m*4.5m*1.4m | |
| power supply | AC220V，50Hz,1000W | |||||
| weight | 1800kg | 1900kg | 2000kg | 2200kg | 2300kg | |
Computerized quilting machine G type features：
The LED lighting;
The main shaft adopts the upper and lower electrosynchronous transmission, the head movement adopts the linear guide rail, the motion precision is high, the noise is low.
Adopting a reliable industrial control system, the main axis adopts ac servo system, X and Y to adopt the step drive system.
You can use USB flash disk copy and other files and support USB hot plug.
It is very convenient to copy and delete the pattern files through the function of pattern management.
With the ability to scan various patterns, it can rotate and mirror the pattern.
The function of the unit and the zero reset function, the work statistics function;
It provides positive and reverse form of solid seam, which can be specially treated and can change the length of the fixed seam.
The pattern track looks for function, which is used to quickly locate a certain point in the pattern.
Real-time display of quilting state and prompt operation method;
Can carry forward or reverse quilting, and provide empty, empty, and threaded buttons.
It is easy to set up and modify the frame boundaries by setting and modifying functions.
The position shifts and fine-tune functions, which can be carefully quilted for sewing.
The pattern can be scaled automatically by the setting of the boundary and the edge of the pattern.
The machine is equipped with hydraulic central oil, which is simple and reliable.
The machine head provides two sets of pressing and pressing feet, and the replacement is convenient.
Single head, single needle, double lock line trace, large rotary shuttle;
The actual power consumption of a machine is less than 1 kilowatt;
Automatic stop at the time of the stop when the needle is off.
To be able to quickly detect the state of the machine and repair it.
The main shaft fault detection function, can effectively avoid the main shaft failure caused the pull of the bed to be phenomenon; Have the protection function such as crossing boundary;
Providing automatic and manual regression to the origin mode to avoid unnecessary downtime;
The machine head and spin spindle atomization lubricate the needle bar and spindle life for longer
